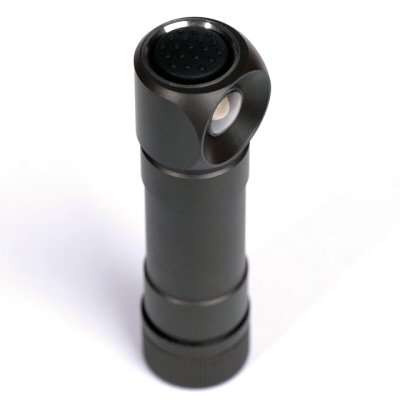

| The H501w is a high performance, versatile, all
aluminum headlamp with a warm white tint LED. The H501w
can also be used as a general purpose angled flashlight
without its headband. Three light levels spread far
apart, easily selected with a pushbutton switch. Powered
with one AA size battery, the H501w can produce a
maximum of 80 Lumens of smooth flood light. |
|
| Specifications |
|
|
 |
Light Output:
Constant ratio output level spread. Current
regulated.
80 Lumens (2.3 hr) on High
15
Lumens (19 hr) on Medium
2.7 Lumens (3.5 days)
on Low
Light output and runtimes are measured
using a Sanyo 2700 mAh NiMH battery. Light output
are out the front values.
|
|
LED: CREE XLamp XR-E Q3 5A |
|
Weight
21 gram (0.74 oz)
41
gram (1.45 oz) with an alkaline battery
63
gram (2.22 oz) with a battery and headband |
|
Dimensions
Diameter 18.5 mm (3/4”)
Height 71.2 mm (2 3/4”) |
|
Battery: One AA size alkaline, 1.5v
lithium primary, NiMH rechargeable, or 3.7v 14500
Li-ion rechargeable. Reverse polarity protection.
|
|
|
