商品説明
【18650充電池専用モデル】

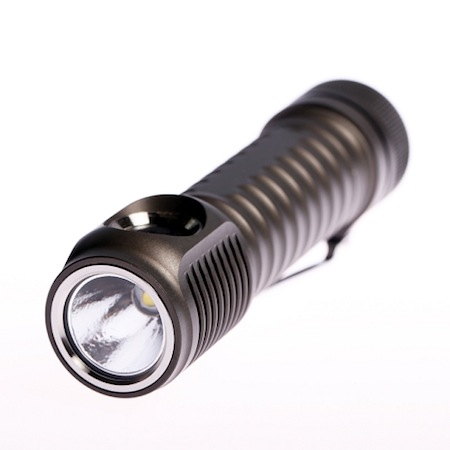

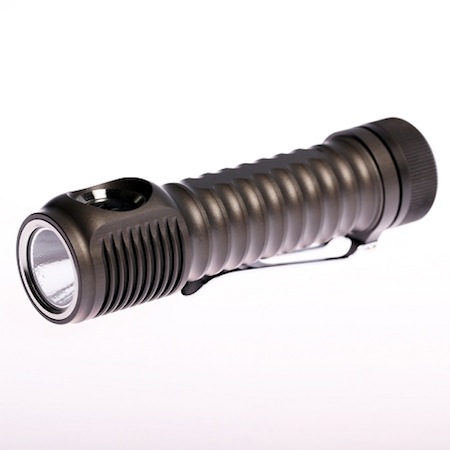

ZEBRALIGHT ゼブラライト SC62 18650 Flashlight Cool White
Cree XM-L2 Cool White (Nominal CCT 6300K) 搭載


Cree XM-L2 Cool White (Nominal CCT 6300K)
18650(3.6/3.7V)×1本専用モデル

3段階明るさ切替機能付

※3.0V CR123×2本では、使用できません。


【操作法】
点灯‐消灯‐調光は、ヘッドのプッシュ・ボタン操作


サイズ : 全長約96.5mm×径約24.4mm

重量 : 約40g

付属品 : クリップ、予備Oリング
※電池、ホルスターは付属しておりません。

  • LED: Cree XM-L2 Cool White (Nominal CCT 6300K)
  • User Selectable Levels: 3 main levels (High, Medium and Low). Each main level can be programmed to one of its two sub-levels. The second sub-level of the each main levels can be further programmed to different brightness levels.
  • Light Output (runtimes)
    • High:         H1 1000 Lm (2 hr)   or    H2  620 Lm (2.5 hrs) / 350 Lm (3.9 hrs)
    • Medium:    M1 70 Lm (30 hrs)    or    M2   32 Lm (66 hrs) / 12 Lm (172 hrs)
    • Low:         L1   3.7 Lm (16 days)   or    L2   0.4 Lm (2.5 months) / 0.06 Lm (4.6 months) / 0.01 Lm (5.5 months)
    • Beacon Strobe Mode: 0.2Hz Beacon at Low / 0.2Hz Beacon at H1 / 4Hz Strobe at H1 / 19Hz Strobe at H1

    • Light output are ANSI out the front (OTF) values. Runtimes tested (and parasitic drain estimated) using ZL634 batteries.
  • Operating Voltage Range: 2.7V - 4.2V
  • Battery: One 18650 size (up to 69mm long) 3.6/3.7V li-ion rechargeable. Batteries are not included in the package.
  • Parasitic Drain: Negligible (much less than the self discharging of a battery)
  • Beam Type
    • 80 degree spill
    • 12 degree hot spot
  • Dimensions
    • Head Diameter: 0.96 inch (24.4 mm)
    • Length:    3.8 inch (96.5 mm)
  • Weight
    • 1.4 oz (40 gram)
  • Features
    • PID thermal regulated outputs (1000 and 620 Lm)
    • Battery capacity indicator (LED flashes 1-4 times, 4 short clicks to start)
    • Automatic stepping down from High to Medium, and from Medium to Low when battery capacity is low
    • Builtin over-discharging protection (2.7V cutoff)
    • Durable electronic soft-touch switch
    • Smart user interface provides fast and easy access to all brightness levels and beacon-strobes.
    • Precision machined unibody casing from premium grade  aluminum bar stocks
    • Proprietary heat sinking design bonds the LED board directly to the unibody aluminum casing
    • Durable natural hard anodized finish (Type III Class I)
    • Sealed and potted LED driver circuitry
    • Battery reverse polarity protection
    • Tempered optical grade glass
    • Orange peel textured reflector
    • Waterproof to IPX7 (2 meters, 30 minutes)
